Description
The Michigan Wheel XHS Xchangeable Hub Propeller Series offers high performance and versatility. This exchangeable hub kit has a Delrin cushioned sleeve that absorbs impact and stress caused by shifting gears and is designed to spin under significant impact to protect your lower end unit. For use with the Vortex and Apollo Prop Housings, the XHS II Hub is also designed to be interchangeable with Mercury’s Flo-Torq II hub system, making it a great choice for a replacement or spare prop.

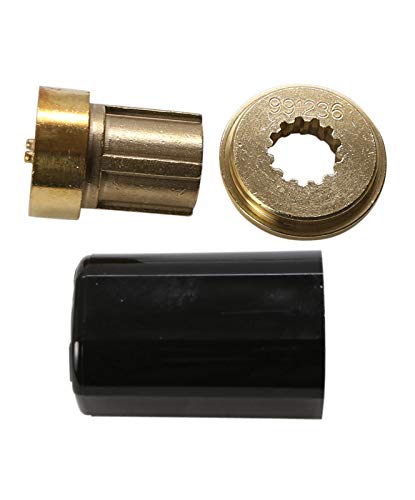

Michigan XHS Hub Kit 114 For Mercury/Mariner/Force 30-70HP For Vortex, Ballistic, and Apollo Propellers
Michigan XHS 114 hub kit fits these applications:
Mercury, Mariner
•Model 402-500…….1974 thru 76
•Model 402-500-700…….1977 thru 84
•25 HP Bigfoot (4-Stroke)…….1999 and newer
•30 HP (2 and 4 Stroke)…….1994 and newer
•30 HP (Sea Pro/Marathon)…….1994 and newer
•35 HP…….1984 thru 1989
•40 HP (2 and 4 Stroke)(Not Bigfoot)…….1977 and newer
•40 HP (Sea Pro/Marathon)…….1977 and newer
•45 HP…….1986 thru 89
•48 HP (Mariner)……. All years
•50 HP (2 and 4 Stroke)(Not Big Foot)…….1977 and newer
•55 HP (Mercury/Sea Pro/Marathon)…….1995 and newer
•Model 650…….1972 thru 76
•60 HP (Mariner)…….1976
•60 HP (Not Bigfoot or Sea Pro)…….1978 and newer
•60 HP (2 Stroke)…….1978 and newer
•70 HP……. Thru 1983
Force
•40 and 50 HP…….1995 thru 98
•70 HP…….1991 thru 95
•75 HP…….1996 thru 98
•13 tooth spline
•Uses your existing nut, washer and cotter pin as required.
Our part number XHS 114
