Description
Vortex 4-Blade
For quicker planing, improved handling and acceleration. Vortex 4-Blade aluminum propellers are a great alternative to a comparable 3-Blade propeller, offering enhanced performance when towing water skiers, tubers, knee and wake boarders.
Recommended Boat Applications: Inflatables, Aluminum Consoles, Walleye boats, Offshore Singles, Pontoons, Ski Boats, Family Cruisers.

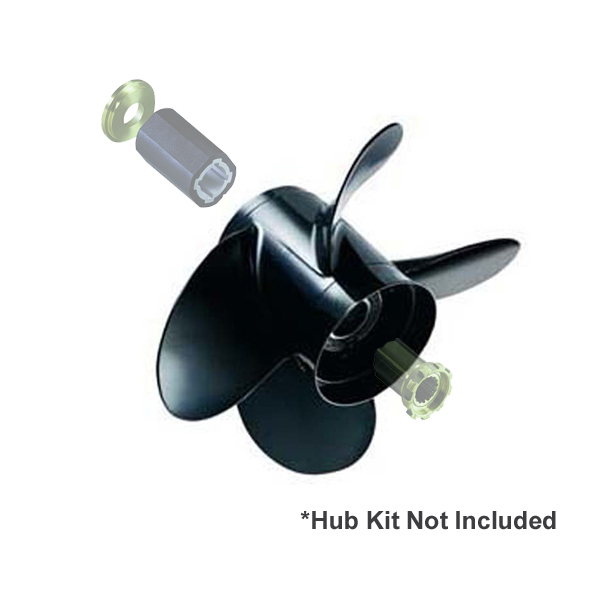

Michigan Vortex Boat Propeller 13-3/8 X 15 RH 4 Blade Aluminum 941415
Michigan Vortex propeller features include:
•high performance blade geometry
•precision balanced blades
•high gloss powder coat finish
•interchangeable with the Mercury Flo-Torq IITM system
Our part number 941415
OEM Replacement 8M8026580, Honda 58134-ZW1-015AH, 763965
13-3/8 X 15 RH 4 Blade AL Vortex Propeller
Vortex propellers require a hub kit to install
EVINRUDE, JOHNSON XHS HUB KIT
40 HP E-TEC…..2004 and newer—–XHS HUB KIT 206
45 HP 2 Cyl. Commercial…..1986-1995—–XHS HUB KIT 206
50 HP E-TEC…..2004 and newer—–XHS HUB KIT 206
50 HP 2 Cyl. Commercial…..1977-1979—–XHS HUB KIT 206
50 HP 2 Cyl. Pleasure…..1971-1974—–XHS HUB KIT 206
50 HP 3 cyl. Pleasure…..1994-1998—–XHS HUB KIT 206
55 HP 3 Cyl……1968-1969—–XHS HUB KIT 206
55 HP 2 Cyl. Commercial…..1980 and newer—–XHS HUB KIT 206
55 HP E-TEC…..2009 and newer—–XHS HUB KIT 206
60 HP 3 Cyl. Pleasure…..1970-1971; 1986-2001—–XHS HUB KIT 206
60 HP E-TEC…..2004 and newer—–XHS HUB KIT 206
60 HP 4-Stroke…..1998 and newer—–XHS HUB KIT 210
65HP 3 Cyl. Pleasure…..1972-1973—–XHS HUB KIT 206
65 HP 3 Cyl. Commercial…..1984-2001—–XHS HUB KIT 206
65 HP Pontoon Series…..2014 and newer—–XHS HUB KIT 206
70 HP 3 Cyl. Pleasure…..1974 and newer—–XHS HUB KIT 206
70 HP 3 Cyl. Commercial…..1974-2001—–XHS HUB KIT 206
70 HP 4-Stroke…..1998 and newer—–XHS HUB KIT 210
75 HP 3 Cyl. Pleasure…..1975-1984—–XHS HUB KIT 206
75 HP E-TEC…..2004 and newer—–XHS HUB KIT 206
85 HP…..1969-1980; 1991-1995—–XHS HUB KIT 206
88 HP…..1981-1996—–XHS HUB KIT 206
90 HP…..1981 and newer—–XHS HUB KIT 206
90 HP E-TEC (20″ Shaft Length)…..2004 and newer—–XHS HUB KIT 206
90 HP Pontoon Series…..2014 and newer—–XHS HUB KIT 206
100 HP…..1979-1980; 1989-1993—–XHS HUB KIT 206
110 HP…..1986-1989—–XHS HUB KIT 206
112 HP…..1994-1996—–XHS HUB KIT 206
115 HP…..1973 and newer—–XHS HUB KIT 206
115 HP E-TEC (20″ Shaft Length)…..2004 and newer—–XHS HUB KIT 206
120 HP…..1986-1994—–XHS HUB KIT 206
125 HP…..1971-1972—–XHS HUB KIT 206
130 HP E-TEC (20″ Shaft Length)…..2004-2010—–XHS HUB KIT 206
135 HP…..1973-1976—–XHS HUB KIT 206
140 HP…..1977-1994—–XHS HUB KIT 206
JOHNSON 4-Stroke
90 HP 4-Stroke…..2002-2005—–XHS HUB KIT 225
115 HP 4-Stroke…..2002-2005—–XHS HUB KIT 225
140 HP 4-Stroke…..2002-2005—–XHS HUB KIT 226
FORCE (Using Mercury 4-1/4″ Gearcase)
75 HP…..1999—–XHS HUB KIT 202
90 HP…..1995 and newer—–XHS HUB KIT 202
90 HP L-Drive…..1990-1991—–XHS HUB KIT 202
120 HP…..1995 and newer—–XHS HUB KIT 202
120 HP L-Drive…..1990-1991—–XHS HUB KIT 202
150 HP…..1989-1994—–XHS HUB KIT 202
150 HP L-Drive…..1991—–XHS HUB KIT 202
HONDA
BFP 60…..2010 and newer—–XHS HUB KIT 207
BF 75…..1995-1998—–XHS HUB KIT 202
BF 75…..1999 and newer—–XHS HUB KIT 207
BF 90…..1995-1998—–XHS HUB KIT 202
BF 90…..1999 and newer—–XHS HUB KIT 207
BF 100…..2016 and newer—–XHS HUB KIT 207
BF 115…..1998-2010—–XHS HUB KIT 207
BF 130…..1998-2002—–XHS HUB KIT 207
MERCURY, MARINER, SEA RAY
40 & 50 HP 4-Stroke / Big Foot…..All Years—–XHS HUB KIT 202
40 HP Command Thrust…..2014 and newer—–XHS HUB KIT 202
40 HP Sea Pro 4-Stroke—–XHS HUB KIT 202
50 HP Command Thrust…..2014 and newer—–XHS HUB KIT 202
60 HP 4-Stroke / Big Foot…..1995 and newer—–XHS HUB KIT 202
60 HP (Sea Pro/Marathon)…..1995 and newer—–XHS HUB KIT 202
60 HP Command Thrust…..2014 and newer—–XHS HUB KIT 202
60 HP Sea Pro 4-Stroke…..2016 and newer—–XHS HUB KIT 202
60 HP (Model 650 2 Cyl.)…..Thru 1971—–XHS HUB KIT 202
65 HP (Model 650 4 Cyl.)…..1961-1970—–XHS HUB KIT 202
70 HP…..1987-1989—–XHS HUB KIT 202
75 HP (Sea Pro/Marathon)…..All Years—–XHS HUB KIT 202
75 HP 2-Stroke…..1984-2005—–XHS HUB KIT 202
75 HP 4-Stroke…..2001 and newer—–XHS HUB KIT 202
80 HP…..1978-1989—–XHS HUB KIT 202
80 HP (Mariner)…..1978-1983—–XHS HUB KIT 202
80 HP (Model 800 2 & 4 Cyl.)…..Thru 1977—–XHS HUB KIT 202
80 HP (Yamaha)…..1977-1983—–XHS HUB KIT 202
80 HP (Model 850 2 & 4 Cyl.)…..Thru 1977—–XHS HUB KIT 202
90 HP (Yamaha)…..1978-1983—–XHS HUB KIT 202
90 HP 2-Stroke…..1978 and newer—–XHS HUB KIT 202
90 HP 4-Stroke…..2001 and newer—–XHS HUB KIT 202
100 HP….1988 and newer—–XHS HUB KIT 202
115 HP (Yamaha)…..1978-1983—–XHS HUB KIT 202
115 HP…..1978 and newer—–XHS HUB KIT 202
115 HP 4-Stroke…..2001 and newer—–XHS HUB KIT 202
125 HP…..1994 and newer—–XHS HUB KIT 202
140 HP (Includes Sea Pro/Offshore)…..1978-1981—–XHS HUB KIT 202
140 HP (Yamaha)…..1978-1979—–XHS HUB KIT 202
Models 900-1150-1500…..Thru 1977—–XHS HUB KIT 202
NISSAN / TOHATSU
BFW60…..2014 and newer—–XHS HUB KIT 207
BFT75…..2014 and newer—–XHS HUB KIT 207
BFT90…..2014 and newer—–XHS HUB KIT 207
60C (Large Gearcase)…..Thru 1999—–XHS HUB KIT 209
70C (Large Gearcase)…..Thru 2002—–XHS HUB KIT 209
70 HP TLDI…..2002-2009—–XHS HUB KIT 209
75 HP TLDI…..2010 and newer—–XHS HUB KIT 209
90 HP…..1987-2001—–XHS HUB KIT 209
90 HP TLDI…..2001 and newer—–XHS HUB KIT 209
115 HP…..1992-2001—–XHS HUB KIT 209
115 HP TLDI…..2004 and newer—–XHS HUB KIT 209
120 HP…..1988-2003—–XHS HUB KIT 209
140 HP…..1988-2003—–XHS HUB KIT 209
SUZUKI
DF 60 4-Stroke…..1998-2009—–XHS HUB KIT 210
DF 70 4-Stroke…..1998-2008—–XHS HUB KIT 210
DF 75…..1983-1997—–XHS HUB KIT 210
DT 85…..1979-2000—–XHS HUB KIT 210
DT 90…..1989-1997—–XHS HUB KIT 210
DT 100…..1989-2000—–XHS HUB KIT 210
DT 115…..1981-2001—–XHS HUB KIT 210
DT 140…..1981-2001—–XHS HUB KIT 210
DF 50AV 4-Stroke…..2015 and newer—–XHS HUB KIT 225
DF 60AV 4-Stroke…..2015 and newer—–XHS HUB KIT 225
DF 70A 4-Stroke…..2009 and newer—–XHS HUB KIT 227
DF 80A 4-Stroke…..2009 and newer—–XHS HUB KIT 227
DF 90 4-Stroke…..2001-2008—–XHS HUB KIT 225
DF 90A 4-Stroke…..2009 and newer—–XHS HUB KIT 227
DF 100 4-Stroke…..2009 and newer—–XHS HUB KIT 225
DF 115 4-Stroke…..2001-2012—–XHS HUB KIT 225
DF 115A 4-Stroke…..2013 and newer—–XHS HUB KIT 226
DF 140 4-Stroke…..2002-2012—–XHS HUB KIT 226
DF 140A 4-Stroke…..2013 and newer—–XHS HUB KIT 226
YAMAHA (“K” Series)
T50 HP…..1996 and newer—–XHS HUB KIT 208
T60…..2003 and newer—–XHS HUB KIT 208
60 HP (Includes C60/E60/P60)…..1992-2005—–XHS HUB KIT 208
F70 4-Stroke…..2010 and newer—–XHS HUB KIT 208
70 HP…..1984 and newer—–XHS HUB KIT 208
F75 4-Stroke…..2003 and newer—–XHS HUB KIT 208
75 HP (Includes C75/E75/P75)…..1994-1999—–XHS HUB KIT 208
80 HP…..1997—–XHS HUB KIT 208
F80 4-Stroke…..1999-2002—–XHS HUB KIT 208
85 HP…..1991-1997—–XHS HUB KIT 208
F90 4-Stroke…..1999 and newer—–XHS HUB KIT 208
90 HP (Includes C90)…..1984 and newer—–XHS HUB KIT 208
F100 4-Stroke…..1999-2002—–XHS HUB KIT 208
F115 54-Stroke…..2000 and newer—–XHS HUB KIT 203
115 HP (Includes C115/P115)….1984 and newer—–XHS HUB KIT 203
130 HP…..1984-2003—–XHS HUB KIT 203
PARSUN, SELVA
Parsun T60…..All Years—–XHS HUB KIT 208
Parsun T75……All Years—–XHS HUB KIT 208
Parsun T85…..All Years—–XHS HUB KIT 208
Parsun T90…..All Years—–XHS HUB KIT 208
Selva 30XS (Marlin)…..2014 and newer—–XHS HUB KIT 208
Selva 40XS (Marlin)…..2014 and newer—–XHS HUB KIT 208
Selva 40XS (Tarpon)…..2014 and newer—–XHS HUB KIT 208
Selva 50XS (Marlin)…..2014 and newer—–XHS HUB KIT 208
Selva 50XS (Murena)…..2014 and newer—–XHS HUB KIT 208
Selva 70XSREFI (Murena)…..2014 and newer—–XHS HUB KIT 208
Selva 80XS (Marlin)…..2014 and newer—–XHS HUB KIT 208
Selva 100XS (Marlin)…..2014 and newer—–XHS HUB KIT 208
Selva 115 EFI (Tarpon)…..2014 and newer—–XHS HUB KIT 203
OMC 400, COBRA 4-1/4″ Gearcase
Model 400 2.3 L (120 HP)…..Thru 1991—–XHS HUB KIT 206
Model 400 2.5 L (120 HP)…..1978-1984—–XHS HUB KIT 206
Model 400 3.0 L (140 HP)…..Thru 1989—–XHS HUB KIT 206
Cobra 2.3 L (128 HP)…..1988-1991—–XHS HUB KIT 206
Cobra 2.5 l (120 HP)…..1985-1987—–XHS HUB KIT 206
Cobra 3.0 L (140 HP)…..1985-1987—–XHS HUB KIT 206
